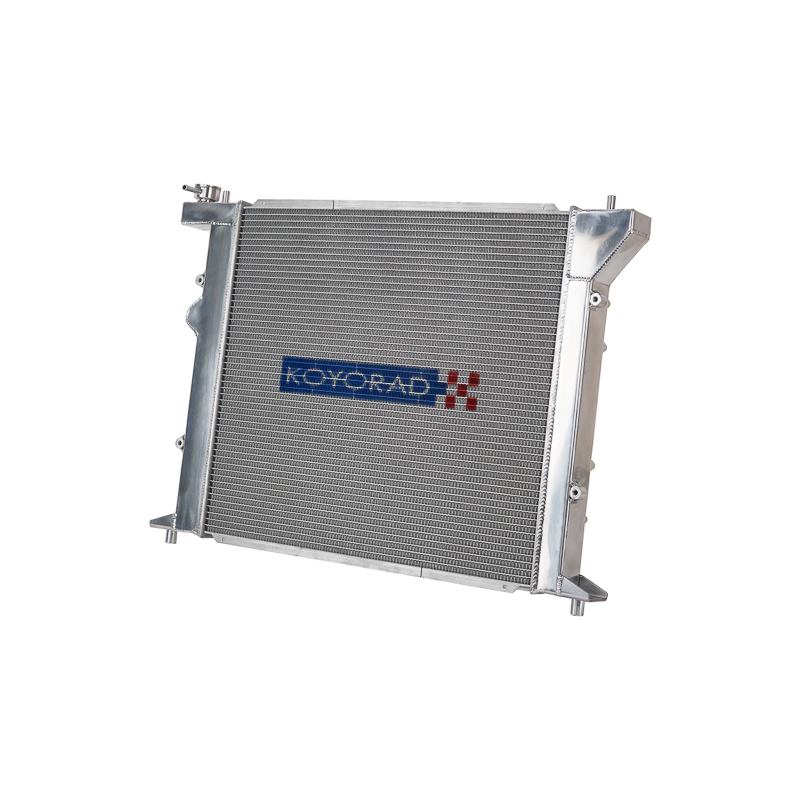

Koyo - Toyota JZX90 (Cresta, Chaser, Mark II) Radiator

Koyorad is proud to announce a high-performance all-aluminum radiator for the ’92-‘96 Toyota JZX90 Chassis; including Chaser, Mark II, and Cresta models with the 2.5L turbo engine and manual transmission.  This radiator features Koyorad's 48mm core, which was selected to increase the volume and surface area over the stock radiator, boosting the JZX90’s endurance and heat capacity for extreme track duty.  In addition, the all-aluminum construction replaces the weak plastic tanks found on the stock unit.  Koyorad has engineered this radiator with precision, maintaining provisions for the factory fans, fan switch, A/C condenser, and also accepts OEM hoses for a quick and simple installation.  Koyorad’s advanced engineering and design methods, impeccable welds, experienced furnace brazing, and triple pressure testing for quality has earned their excellent reputation in performance cooling worldwide.

Features:

• All aluminum construction

• Fully brazed 48mm thick core

• Precision TIG welded

• Two Row construction

• High polished finish

• Direct Fit with OEM fans, A/C Condenser, radiator hoses and fan switch sensor

• Billet filler neck and drain plug

• Triple Pressure tested

Application

92-96 Toyota Chaser/Mark II/Cresta 2.5L Turbo MT: JZX90 Chassis (JDM Application)
