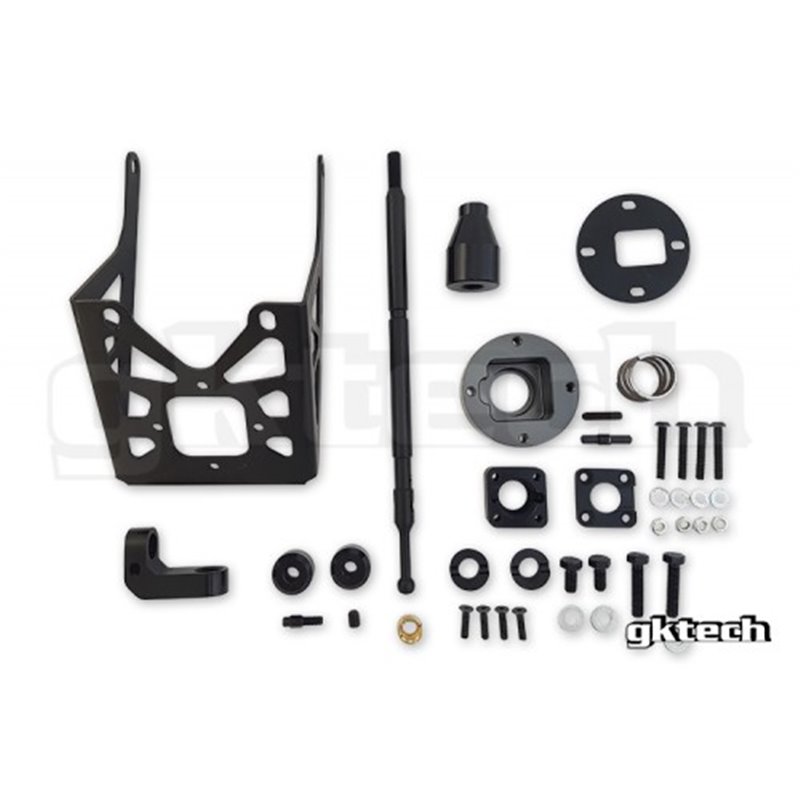

GKTECH Z33/Z34 gearbox shifter relocation

The GKTECH Z33/Z34 gearbox shifter relocation setup has been designed as a bolt on solution when fitting these gearboxes to S and R chassis Nissans (although may fit others) and not having the shifter sit back 6" too far. Our shifter setup sits just 85mm from the rear of the bolt holes on the back of the gearbox.

Designed from scratch with over 200 hours spent modelling, prototyping and testing we are happy with the final result. This design DOES feature reverse lockout.

- CAD designed
- No OEM parts required to fit this to the rear of a Z33/Z34 gearbox
- Features reverse lockout
- Shifter sits just 85mm from the rear of the bolt holes on the back of the gearbox
- Thread for shifter is M10x1.25 (same as S13/S14 SR20 Nissan and many others)

NOTE: Does require cutting of the rear selector shaft (very easy to do with a hack saw blade or cutting disk)
NOTE#2: Will not work with gearbox yokes larger than the OEM Z33 yoke at 95mm in outside diameter
NOTE#3: Fitment is based on running an SR20, KA24, VQ35/37 or RB20/25/26. If you're running an engine that sits further back then the shifter will sit further back.
