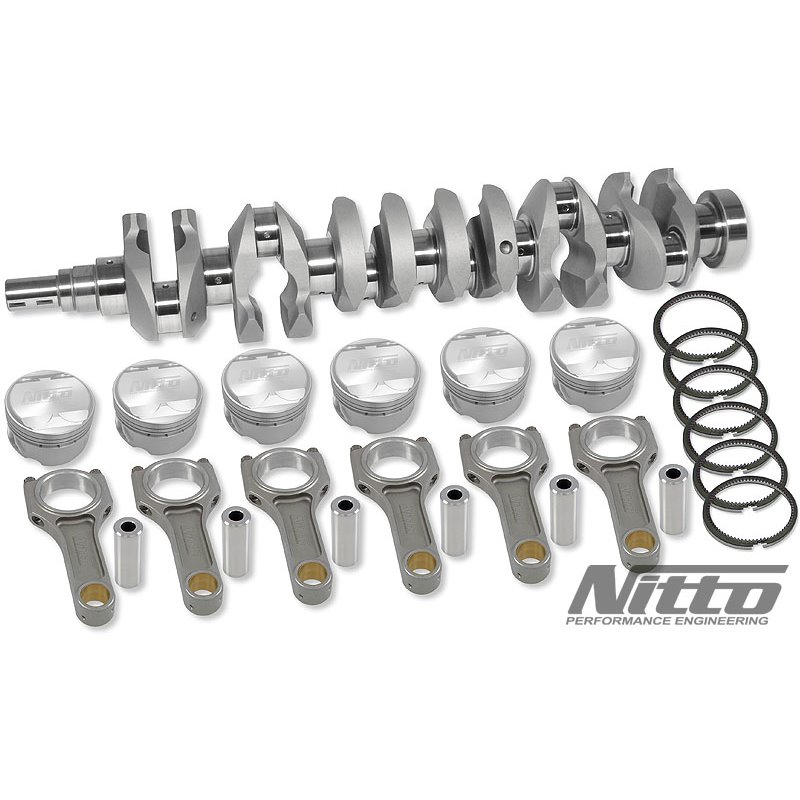

NITTO - RB26 STROKER KIT (I-BEAM RODS)

2.7L Kit NITTO's RB26DETT

2.7Ltr Stroker Kit consist of an increased stroke crankshaft made from solid 4340 billet steel, 4340 one piece forged billet steel I-beam connecting rods and a unique JE/Nitto forged piston set along with upgraded thick wall gudgeon pins and premium ring sets. Engine capacity is increased from 2.6Ltr to 2.7Ltr which provides more power and torque whilst still retaining the RB26’s excellent high revving characteristics.

Rotational capability for the 2.7Ltr Kit is lifted to 12,000 RPM and power handling is rated to 1600 HP.

2.8L Kit NITTO's RB26DETT

2.8Ltr Stroker Kit consist of an increased stroke crankshaft made from solid 4340 billet steel, 4340 one piece forged billet steel I-beam connecting rods and a unique JE/Nitto forged piston set along with upgraded thick wall gudgeon pins and premium ring sets. Engine capacity is increased from 2.6Ltr to 2.8Ltr which provides more power and torque whilst still retaining the RB26’s excellent high revving characteristics. Unlike many other manufacturers of 2.8Ltr kits, Nitto has retained the factory connecting rod length rather than shortening it which is made possible by designing a special piston that allows the connecting rod little end to be pushed up into the oil control ring groove on the piston. The piston runs a special rail support ring to reliably enable this design. Benefits of this system over the shorter connecting rod 2.8Ltr kits are a more desirable rod ratio suited to the characteristic of the engine, higher RPM ceiling, less piston side loading and a stronger ability to deliver HP at higher RPM levels. All components have been meticulously machined to exacting tolerances and the highest standards. All Nitto stroker kits are far superior to the cheaper manufactured kits currently available that consist of cast forged crankshafts, H-beam connecting rods and high silicone content pistons. NITTO's RB26DETT Stroker kits are designed for use in all motorsport classifications including drag racing, drifting and circuit racing.

The 2.8Ltr Kit is lifted to 11,000 RPM and power handling is also rated to 1600 HP. The The changed harmonics due to the crankshaft material and design results in a much “freer revving” more balanced engine. Continuous testing and development on and off the track has allowed us to design a kit with extreme strength whilst retaining a sensible reciprocating mass weight.
